1.What Material Options Are Available for Our Carbon Fiber Composite Panels?

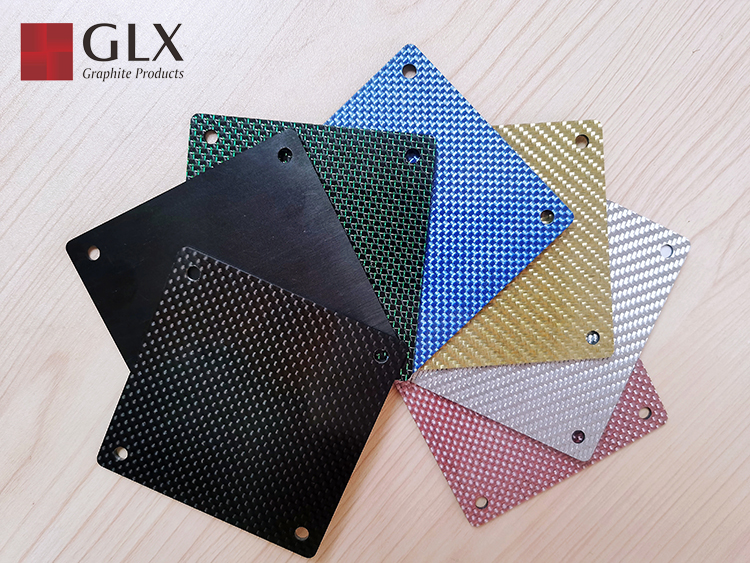

To accommodate diverse customer requirements, our carbon fiber composite panels are available in a variety of base Epoxy Prepreg materials, such as plain/ twill weave carbon fiber fabric, unidirectional carbon fiber, and fiberglass. The surface materials can be customized to meet specific needs, including options like forged carbon fiber, aramid fiber woven fabric, aramid and carbon fiber hybrid, and electroplated fiberglass woven fabric. All prepregs above are impregnated with epoxy resin, and high-modulus carbon fiber can be used for special requirements.

2.How Are the Panel Structures Customized for Strength and Torsional Resistance?

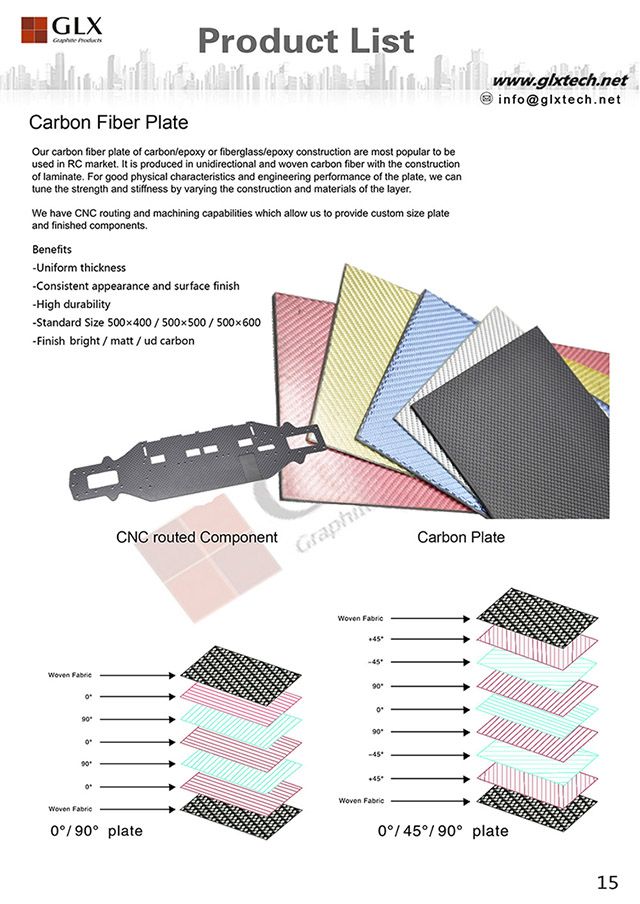

Our composite panels feature a multiple laminations of carbon in an epoxy matrix, with the outer layer consisting of carbon fiber fabric and the inner layers composed of unidirectional carbon fiber. To cater to customer-specific requirements for strength and torsional resistance, the inner unidirectional carbon fibers can be stacked in various orientations, such as 0°/90°, and 0°/90°/45°, resulting in optimized strength and torsional properties in the desired direction.

3.What Are the Key Features and Applications of Our Carbon Fiber Composite Panels?
Our carbon fiber composite panels are characterized by high strength, high rigidity, lightweight, corrosion resistance, and abrasion resistance. They are available in both glossy and matte finishes. The panels are widely used in various applications, including drone components, automotive parts, industrial machinery components, medical equipment parts, and aerospace /car models.

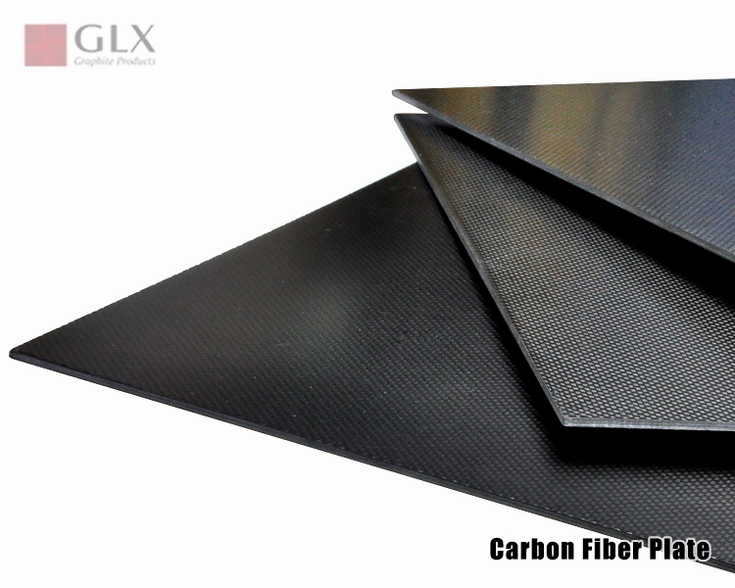

4.What Specification of carbon plate we can provide?
(1) Thickness: 0.2mm, 0.3mm, 0.5mm and above, depend on customer’s requirements.
(2) Size: We provide size as 500 x 400mm, 500 x 500mm, 500 x 600mm and bigger size based on customer requirements.

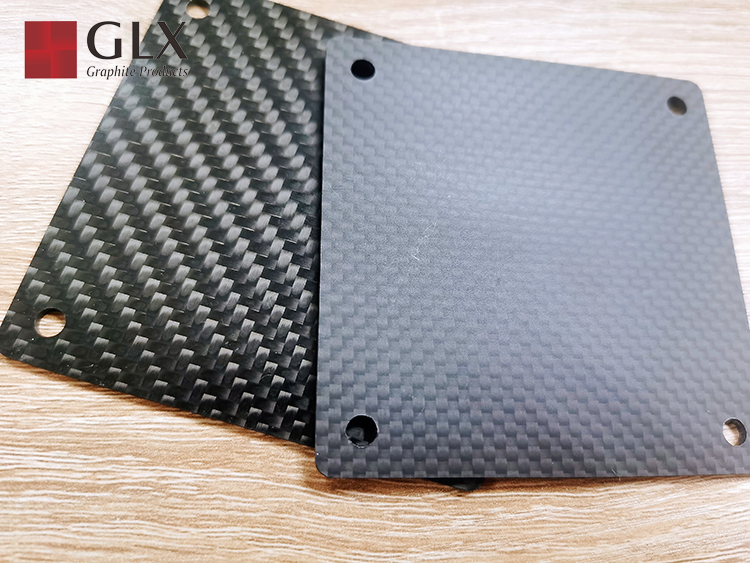

(3) Finish: We provide glossy and matte finishes

5. What service we can provide to you for the carbon fiber plates?

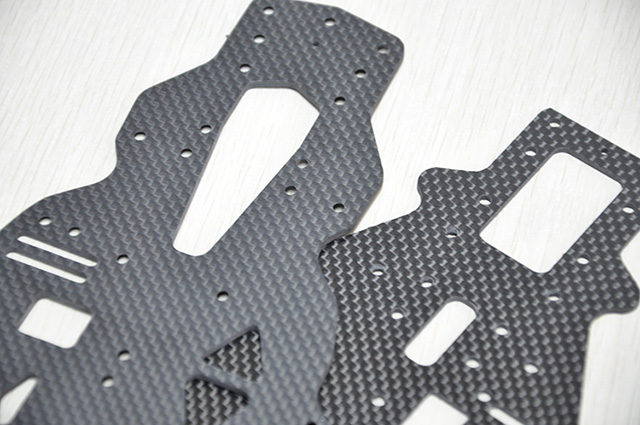

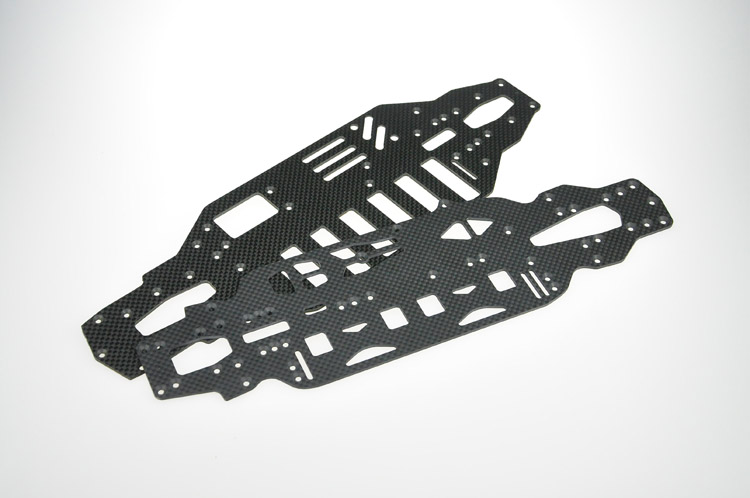

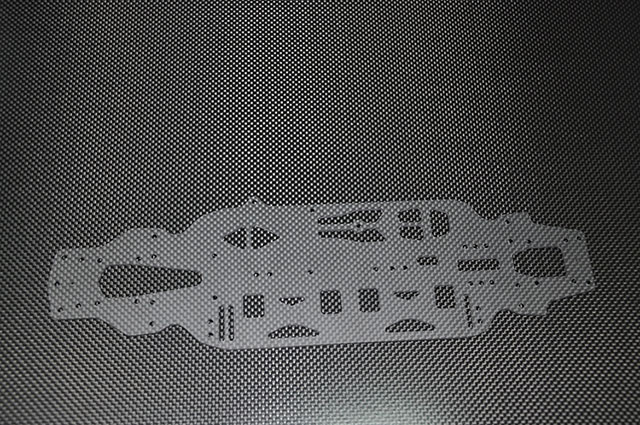

Additionally, we are equipped with CNC routers, enabling us to process the panels into a variety of high-precision components based on customer requirements. You need to provide accurate CAD drawings with accurate dimensions.







1.我们的碳纤维板材采用什么材料？
为满足不同客户需求，我们的碳纤维板材有多重原材料选择：如平纹或斜纹的碳纤维编织布预浸料、单向碳纤维预浸料、玻璃纤维预浸料等。表面材料可以根据客户需求更换成锻造碳纤预浸料、芳纶编织布预浸料、芳纶和碳纤混编预浸料、电镀玻纤编织布预浸料等。所有预浸料均含浸环氧树脂。如有特殊要求，我们可采用高模量碳纤维预浸料来生产板材。

2.板材结构如何针对强度和抗扭力进行定制？
我们的板材采用多层层压结构，外表为碳纤维编织布预浸料，内部为单向碳纤维预浸料。根据客户对板材强度和抗扭力方向的要求，内部单向碳纤维可采用0°/90°/45°等不同方向进行层层叠加，如0°、0°+90°、0°+90°+45°，让板材在指定方向展现更佳的强度和抗扭力物理特性。

3.我们的碳纤维板材的优点和应用领域？
我们的碳纤维板材具有高强度、高刚性、轻质、耐腐蚀和耐摩擦等特点。表面可选亮面和亚光面两种。应用领域广泛，包括无人机配件、汽车配件、工业机械配件、医疗设备配件、航模等。

4.我们能够提供什么规格的碳纤板材？
(1) 厚度： 最薄为单层0.2mm的片材，常用厚度有0.5mm, 1mm, 1.5 - 5mm, 也可以按照客户需求定制。
(2) 尺寸：常用的尺寸有 500 x 400mm, 500 x 500mm, 500 x 600mm，也可以按客户需求定制。
(3) 外观：有亮面和哑光面选择

5.针对碳纤板材，我们还可以提供什么服务？
我们配备CNC加工设备，可根据客户要求将板材加工成各种高精度的产品配件。您需要提供准确的CAD图，并且标注准确的尺寸。
