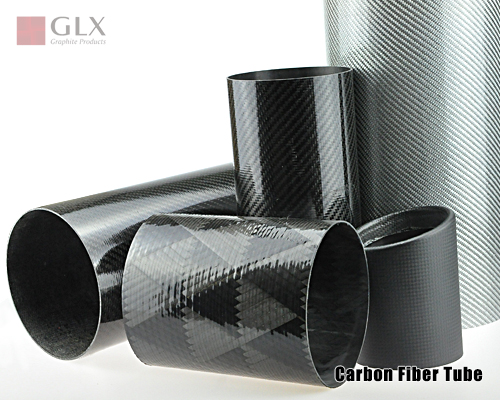

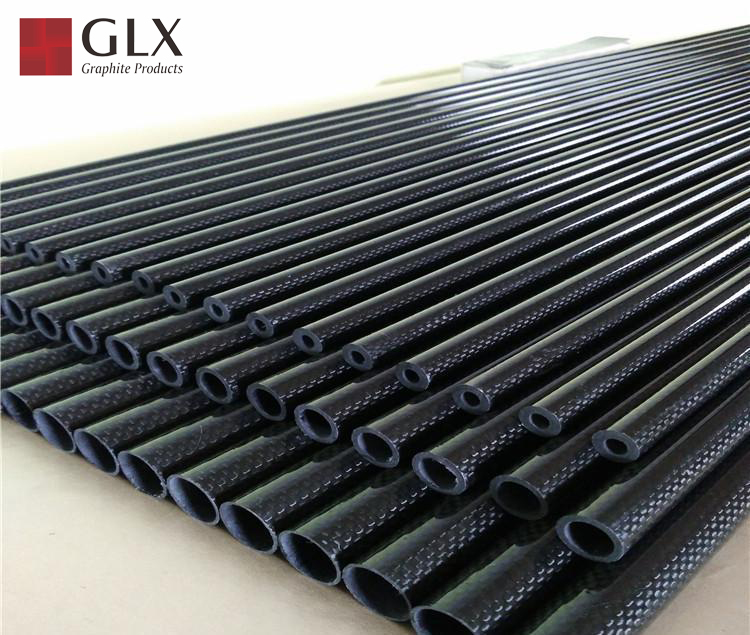

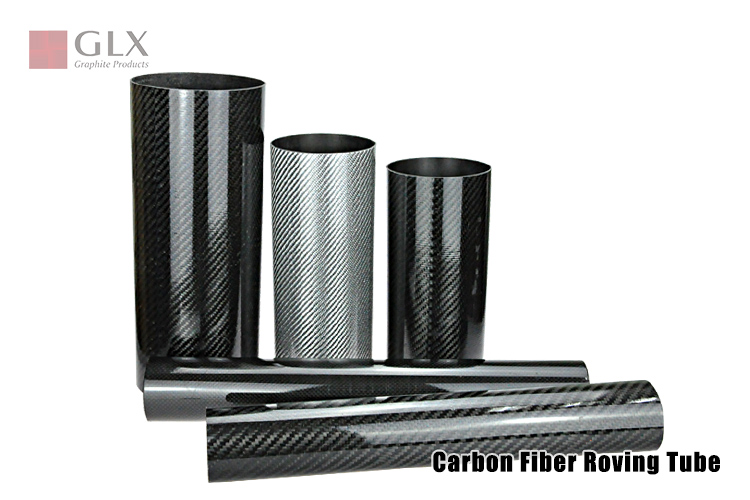

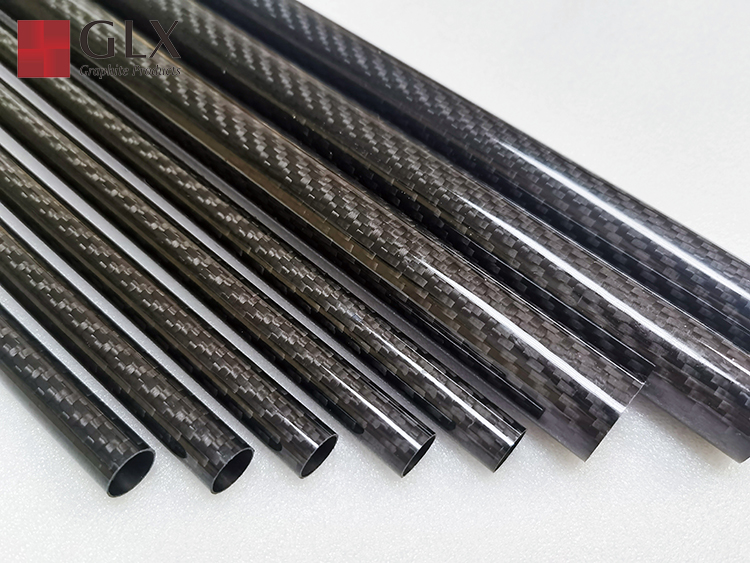

(1) Premium Carbon Fiber Composite Roll Wrapped Fabric Tubes for Diverse Applications
Discover the ultimate solution for high-performance applications with our advanced carbon fiber composite tubes. Designed for exceptional strength, durability, and versatility, our tubes are perfect for a wide range of industries, including RC model, sports equipment, and industrial components.

(2) Unique Layering and Composition for Superior Performance
Our carbon fiber composite tubes feature a surface layer made from carbon fiber, glass fiber, aramid fiber epoxy-based woven fabric prepreg, or carbon fiber forged carbon prepreg material. With a variety of weave patterns, such as plain, twill, and forged carbon fiber, you can customize the outlook and performance of your tubes. The internal structure consists of unidirectional prepreg based on epoxy resin.

(3) Customizable Tube Structure for Enhanced Capabilities
Tailor the tube structure to your specific needs by adjusting the thickness and direction of the unidirectional pre-impregnated material. Tubes can be wound with layers at 0 and 90 degrees on the mold core surface, and if increased torsional strength is required, we can add 45-degree unidirectional carbon fiber layers.

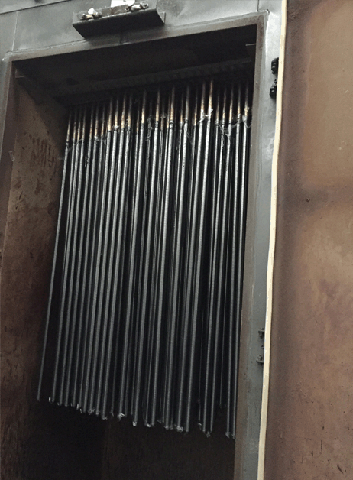

(4) High-Temperature Curing for Optimal Strength and Durability
Once the material is laid, the tubes are placed in an oven for high-temperature curing, ensuring a strong and durable final product.

(5) Versatile Tube Specifications and Custom Shapes

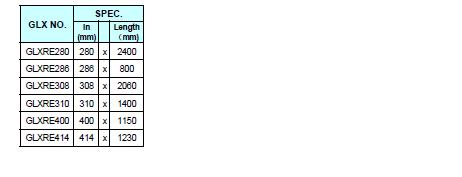

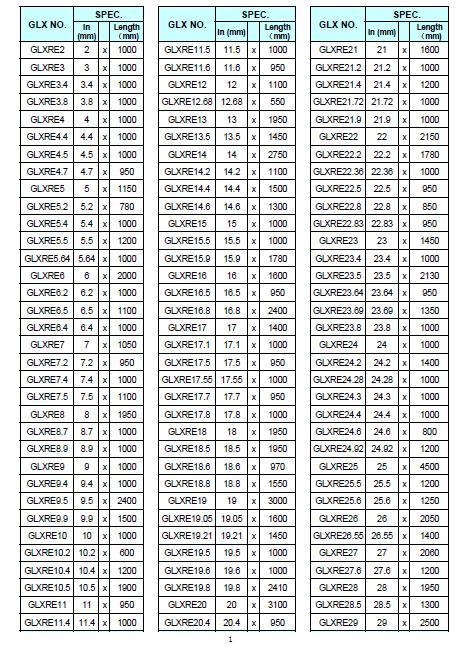

Our tubes can be manufactured with diameters up to 1000mm and lengths up to 4000mm, available with glossy or matte surface finishes to suit your aesthetic preferences. In addition to round tubes, we can also produce custom-shaped tubes, such as square, elliptical, and other unique shapes, to meet your specific requirements.

(6) Target Markets and Applications
Our carbon fiber composite tubes are ideal for a multitude of applications, such as:

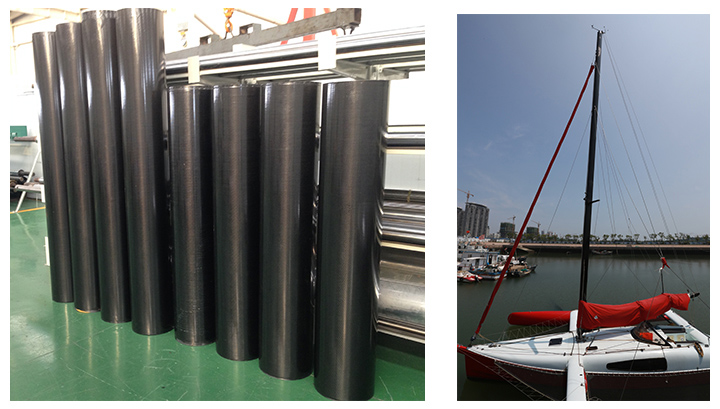

1.Aerospace / RC model: drone / UAV / quadcopter arms and landing gears, helicopter tail booms, and aircraft wing support rods.
2.Sports goods: paddle shafts for boats, sailboat masts, and trekking poles.
3.Extended Reach Tools: telescopic poles and fishing rods.
4.Industrial Components: pipe fittings, support frames, rollers for paper, plastic film machinery, and conveyor belts, as well as other custom applications.

Embrace the unparalleled performance and versatility of our carbon fiber composite tubes for your projects across various industries. Our customizable and innovative solutions are tailored to meet your specific needs, ensuring you receive the perfect product for your application.
