(1) Premium Carbon Fiber Composite Tubes for Diverse Applications
Discover the ultimate solution for high-performance applications with our advanced carbon fiber composite tubes. Designed for exceptional strength, durability, and versatility, our tubes are perfect for a wide range of industries, including RC model, sports equipment, and industrial components.
(2) Unique Layering and Composition for Superior Performance
Our carbon fiber composite tubes feature a surface layer made from carbon fiber, glass fiber, aramid fiber epoxy-based woven fabric prepreg, or carbon fiber forged prepreg material. With a variety of weave patterns, such as plain, twill, and forged carbon fiber, you can customize the outlook and performance of your tubes. The internal structure consists of unidirectional prepreg based on epoxy resin.
(3) Customizable Tube Structure for Enhanced Capabilities
Tailor the tube structure to your specific needs by adjusting the thickness and direction of the unidirectional pre-impregnated material. Tubes can be wound with layers at 0 and 90 degrees on the mold core surface, and if increased torsional strength is required, we can add 45-degree unidirectional carbon fiber layers.
(4) High-Temperature Curing for Optimal Strength and Durability
Once the material is laid, the tubes are placed in an oven for high-temperature curing, ensuring a strong and durable final product.
(5) Versatile Tube Specifications and Custom Shapes

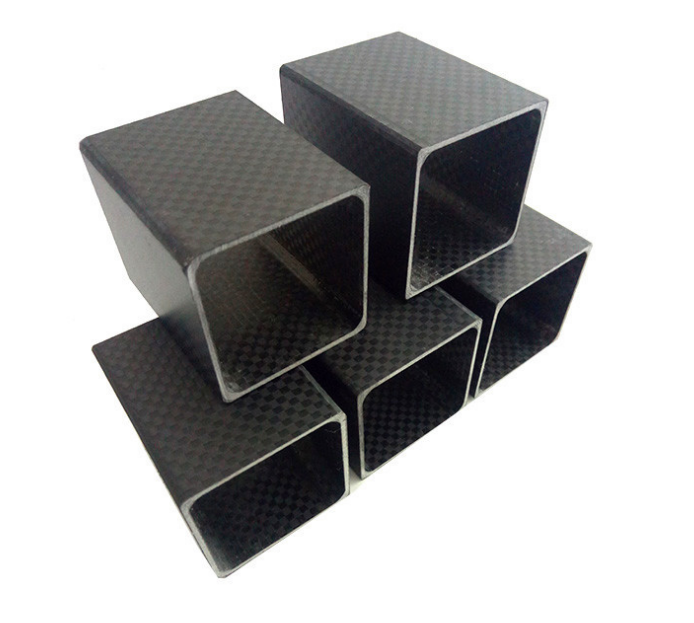

Our tubes can be manufactured with diameters up to 1000mm and lengths up to 4000mm, available with glossy or matte surface finishes to suit your aesthetic preferences. In addition to round tubes, we can also produce custom-shaped tubes, such as square, elliptical, and other unique shapes, to meet your specific requirements.
(6) Target Markets and Applications
Our carbon fiber composite tubes are ideal for a multitude of applications, such as:
1.Aerospace / RC model: drone / UAV / quadcopter arms and landing gears, helicopter tail booms, and aircraft wing support rods.
2.Sports goods: paddle shafts for boats, sailboat masts, and trekking poles.
3.Extended Reach Tools: telescopic poles and fishing rods.
4.Industrial Components: pipe fittings, support frames, rollers for paper, plastic film machinery, and conveyor belts, as well as other custom applications.
Embrace the unparalleled performance and versatility of our carbon fiber composite tubes for your projects across various industries. Our customizable and innovative solutions are tailored to meet your specific needs, ensuring you receive the perfect product for your application.
(1) 多功能碳纤复合材料管
为高性能应用领域提供最佳解决方案，我们的先进碳纤复合材料管具有卓越的强度、耐用性和多样性，非常适用于遥控模型、体育器材和工业零部件等各种行业。
(2) 独特的层叠和组成以实现卓越性能
我们的碳纤复合材料管表层由碳纤、玻纤、芳纶基于环氧树脂的编织布预浸料或锻造碳纤维预浸料制成。通过多种编织纹理，如平纹、斜纹和锻造碳纤维，您可以定制管材的外观和性能。内部结构由基于环氧树脂的单向预浸料组成。
(3) 可定制的管材结构以提高性能
根据您的具体需求，调整单向预浸料的厚度和方向以定制管材结构。管材可以在模具芯表面上以0度和90度的方向进行卷绕，如果需要增加扭力强度，我们可以添加45度单向碳纤维层。
(4) 高温固化以确保最佳强度和耐用性
材料铺设完成后，管材将放入烤箱进行高温固化，确保成品坚固耐用。
(5) 灵活的管材规格和定制形状
我们的管材直径最大可达1000mm，长度可达4000mm，可提供亮光或哑光表面处理以满足您的美学需求。除圆形管外，我们还可以生产定制形状的管件，如方形、椭圆形等其他独特形状，以满足您的特定要求。
(6) 目标市场和应用领域
我们的碳纤复合材料管适用于多种应用场景，例如：
1.航空/遥控模型：无人机/无人飞行器/四轴飞行器的机翼和起落架、直升机尾管和飞机机翼支撑杆。
2.体育用品：船桨的桨柄，帆船的桅杆和登山杖。
3.延伸工具：伸缩杆和钓鱼竿。
4.工业零部件：管道接头、支撑架、卫生纸、塑料薄膜机械和输送带辊轴等定制应用。
