Product Overview
We manufacture high-quality carbon fiber spinner cones using compression molding process. These spinners are designed for RC gasoline-powered fixed-wing aircraft and gliders. A full range of sizes is available to meet the requirements of most model aircraft applications.
Styles & Specifications
• Standard Cone: Diameters 1.75” to 7” in 0.25”
• Increments (approx. 17 sizes)
 |  |
|---|---|

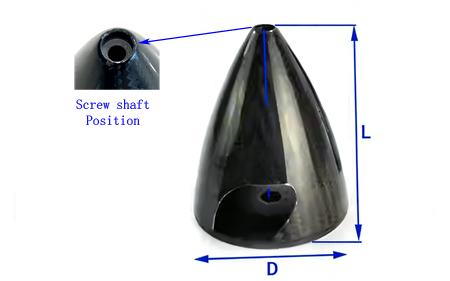

| Propeller Blade Slots | Carbon Backplate |
| Size D（Inch "） | High （mm） | Screw Hole（mm） |
| 1.75 " | 51 | 10 |
| 2.0 " | 58 | 10 |
| 2.25 " | 66 | 10 |
| 2.5 " | 72 | 10 |
| 2.75 " | 80 | 10 |
| 3.0 " | 85 | 10 |
| 3.25 " | 93 | 10 |
| 3.5 " | 101 | 10 |
| 3.75 " | 105 | 10 |
| 4.0" | 119 | 10 |
| 4.25" | 125 | 10 |
| 4.5" | 130 | 10 |
| 4.75" | 141 | 10 |
| 5.0" | 148 | 10 |
| 5.5" | 168 | 10 |
| 6.0" | 185 | 10 |
| 7.0" | 195 | 10 |
Materials & Construction

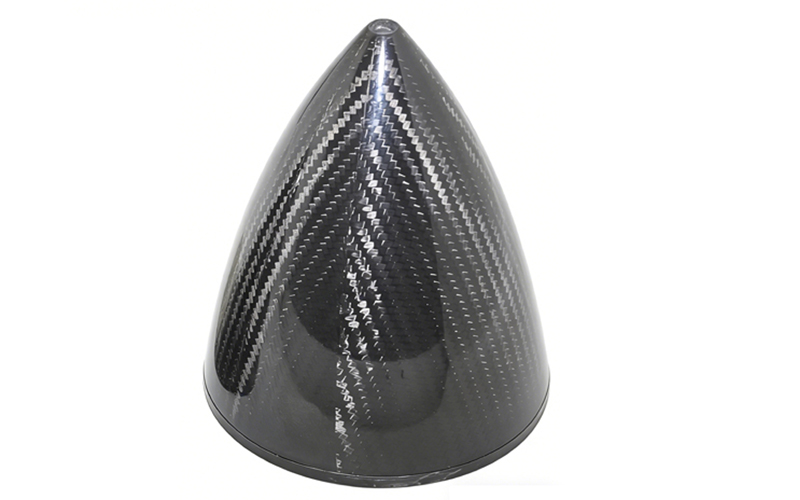

• Standard: Outer layer 3K carbon twill weave or forged carbon pattern; inner layers unidirectional carbon prepreg
• Optional: All-unidirectional carbon construction with colored paint finish (red, blue, white, gray, etc.)

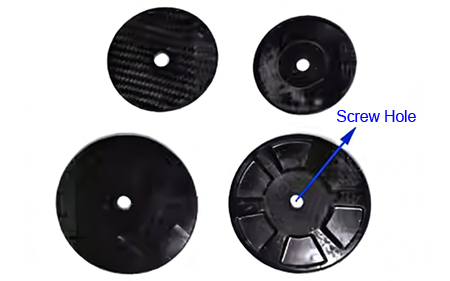

• Backplate: Carbon fiber (standard) or aluminum alloy (optional)
Key Advantages
• Lightweight with high strength
• Excellent rigidity – no deformation at high RPM
• Superior impact and fatigue resistance
Customization Services
• Pre-cut propeller blade slots to customer specification (provide slot dimensions or propeller model)
• Custom design and tooling from customer 3D files or samples
• Options for backplate material, surface color, and wall thickness
For special sizes or designs, please send your drawings. We will provide a quotation and production schedule promptly.
