Product Overview
Manufactured using molded carbon fiber epoxy prepreg, offering an excellent balance of lightweight design and high strength.
Compared with metal or plastic gear, carbon fiber landing gear provides better shock absorption, durability, and flight efficiency.
Available in multiple sizes, with optional wheels, axles, and hardware. Custom development is also supported.

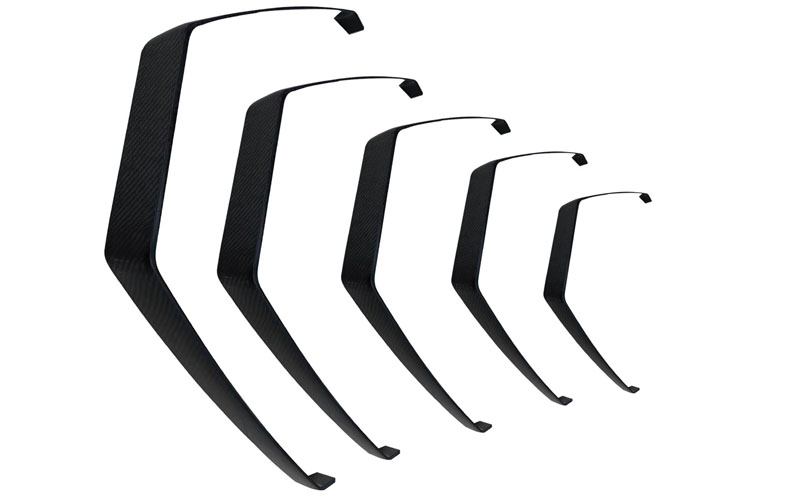

(1) One-Piece Carbon Fiber Landing Gear
One-piece molded construction provides excellent rigidity, low weight, and easy installation. Well-suited for fixed-wing aircraft requiring strength and weight efficiency.
 |  |
|---|---|
| Landing Gear Outline | Dimension Guide |
| A Up Span (mm) | D Down Span (mm) | H High (mm) | B Width (mm) | T (mm) | Weight (g) | Application |
| 110 | 312 | 143 | 25 | 3 | 60 | 70E1-Plane |
| 135 | 320 | 143 | 25 | 70 | 70E2-Plane | |
| 105 | 320 | 162 | 27 | 57 | 70E-Plane | |
| 130 | 295 | 130 | 20 | 2 | 50 | 50E-Plane |
| 85 | 256 | 125 | 20 | 2 | 30 | 30E-Plane |
| 295 | 785 | 335 | 65 | 5 | 675 | 220CC-CF |
| 275 | 785 | 330 | 65 | 5 | 590 | 200CC-CF |
| 255 | 710 | 255 | 60 | 4 | 487 | 150CC-CF |
| 260 | 623 | 268 | 48 | 4 | 304 | 110CC-CF |
| 222 | 575 | 272 | 50 | 4 | 360 | 100CC-CF |
| 200 | 566 | 225 | 42 | 4 | 245 | 80CC-CF |
| 230 | 515 | 205 | 40 | 4 | 201 | 80CC-CF1 |
| 170 | 520 | 215 | 40 | 4 | 188 | 80CC-CF2 |
| 195 | 490 | 236 | 40 | 4 | 210 | 50CC-CF |
| 160 | 465 | 230 | 35 | 3 | 156 | 50CC-CF3 |
| 155 | 430 | 170 | 35 | 3 | 120 | 26CC-CF |
| 120 | 400 | 160 | 35 | 3 | 105 | 26CC-CF1 |
 |
|---|

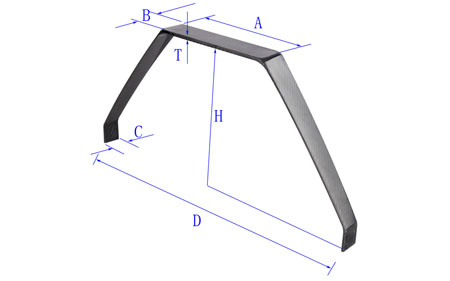

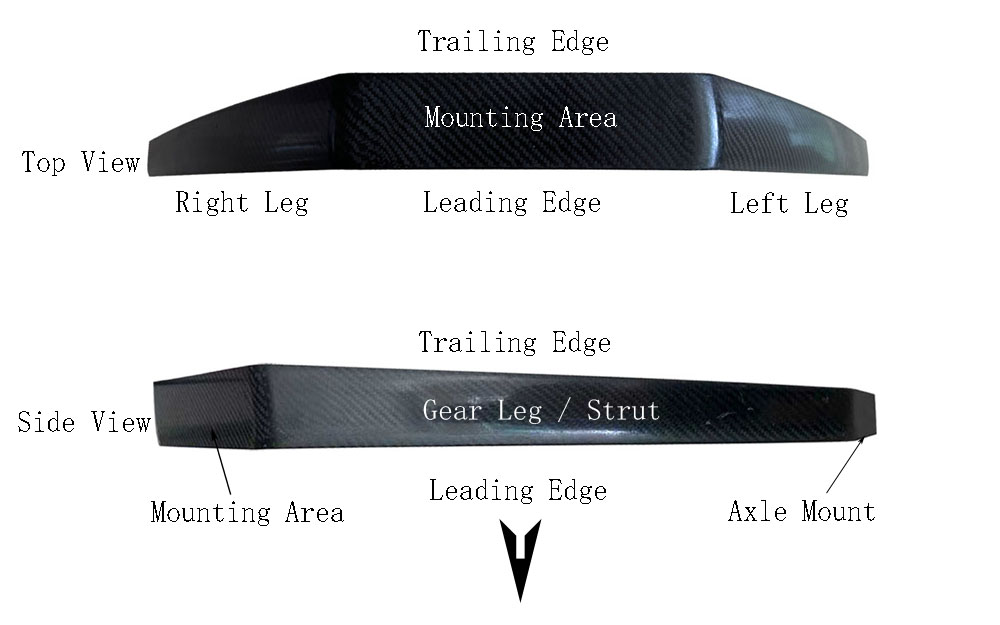

| Landing Gear Labeled Diagram |
(2) Straight Carbon Fiber Landing Gear
Features a streamlined leg cross-section with a thickened leading edge and tapered trailing edge, reducing aerodynamic drag while maintaining strength. Ideal for fixed-wing models focused on flight efficiency and clean appearance.
 |  |
|---|---|

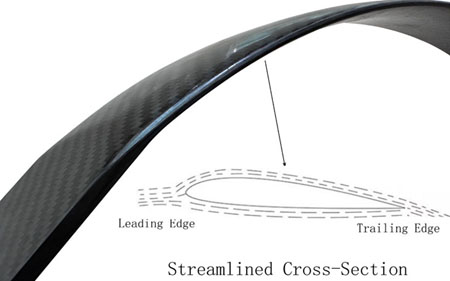

| Streamlined Cross-Sectio | Axle Mount |
(3) Multiple Sizes & Complete Accessories

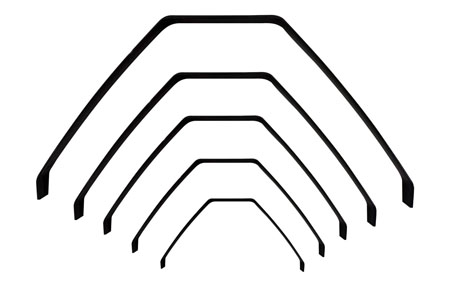

A wide range of sizes and configurations are available to fit most RC fixed-wing aircraft.
Wheels, axles, and hardware can be supplied as part of a complete landing gear set or separately.
 |
|---|

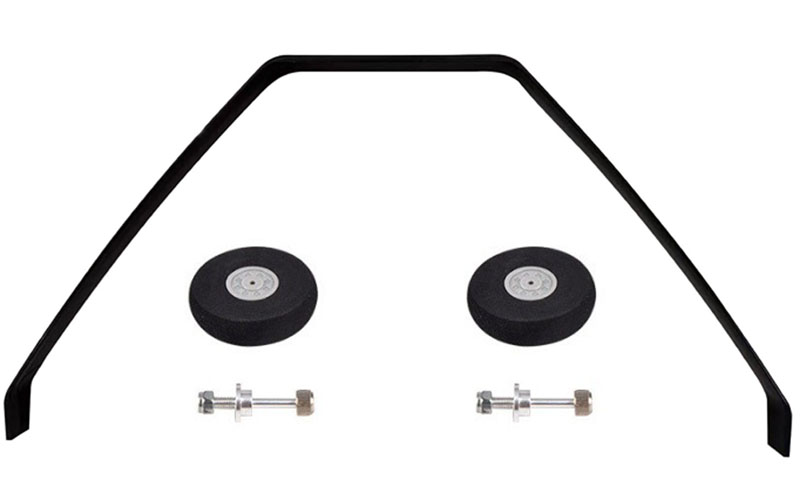

| Carbon fiber landing gear, wheels and axle hardware available |
(4) Custom Development Supported
For new designs, samples or 3D drawings can be provided for custom molded production.
