Product Overview
We manufacture carbon fiber plates / sheets using two proven processes: compression molding and autoclave curing, allowing us to meet a wide range of performance requirements.
Carbon fiber sheets find applications across civilian products and high-end aerospace / defense sectors. We tailor ply schedule, fiber grade, and resin properties (fatigue resistance, temperature tolerance, corrosion resistance) to each specific use case.
For strength-critical applications, we recommend compression molding. For parts requiring superior surface finish or larger dimensions, autoclave processing is the preferred choice. Surface materials are primarily cosmetic and can be customized to your specifications.
Details on our colored weave carbon fiber sheets follow below.
（1）Material System
• Surface layer (two options):
1. Colored coated glass fiber prepreg
2. Carbon/colored TPU filament/silver filament tri-blend hybrid woven fabric
• Structural core: Unidirectional carbon fiber prepreg + high-performance toughened industrial-grade epoxy resin
（2）Construction Features
• Seamless colored glassfiber fabric or tri-blend hybrid outside finish

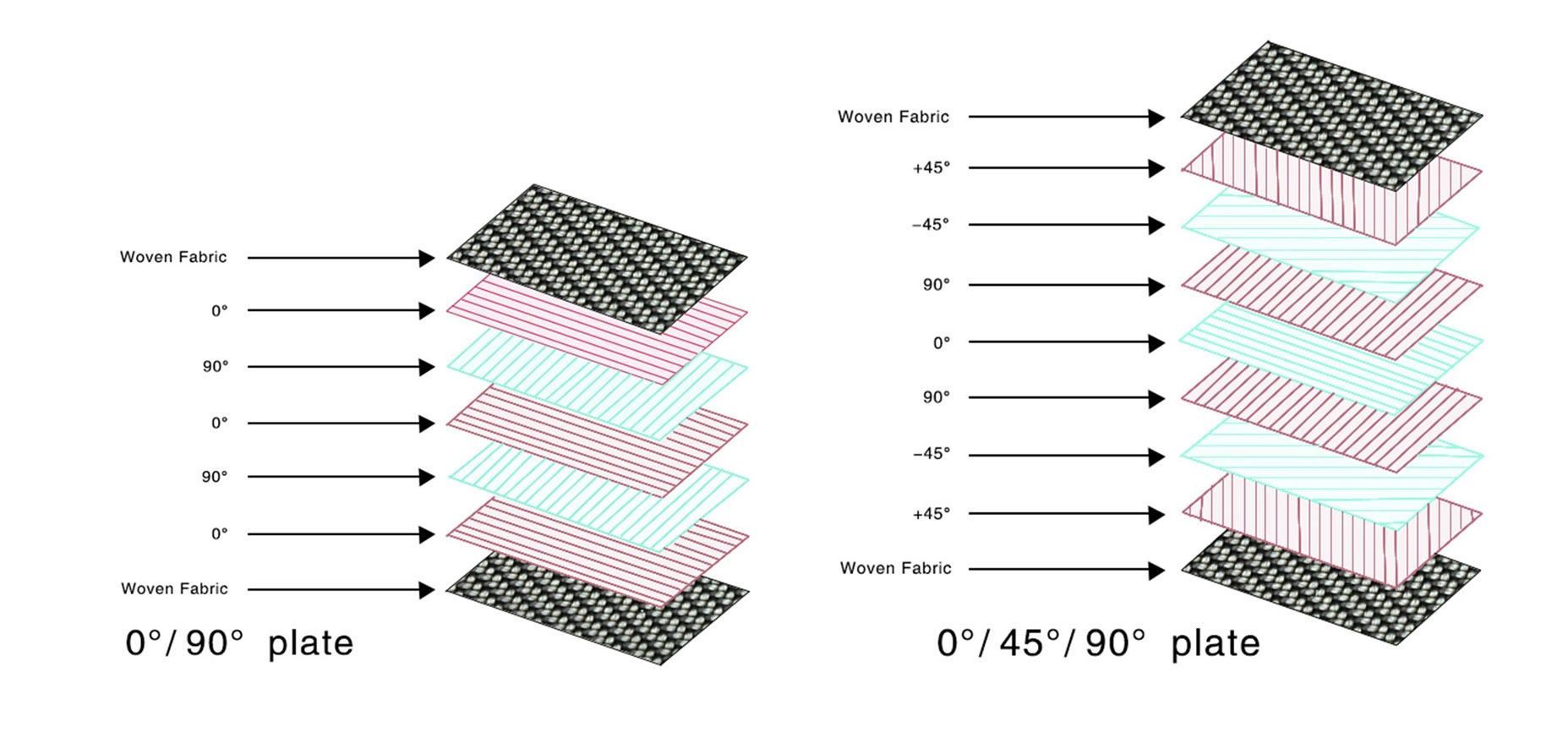

• 0°/90° (balanced, highest bending stiffness)
• 0°/±45°/90° (good torsional resistance)
• Mechanical properties ~85–90 % of weave carbon sheets
（3）Standard Specifications
• Thickness: 0.5 / 1.0 / 1.5 / 2.0 / 2.5 mm … up to 10 mm and thicker
• Thickness tolerance: ±0.1 mm
• Standard sizes: 500 × 400 mm 500 × 500 mm 500 × 600 mm
• Special Size: By Autoclave Processing Max 1000 x 2400mm, by Compression Molding Max 1000 x 1500mm
• Colors: Red, blue, green, gold, purple, gunmetal, pearl white
• Surface finish: gloss / satin / matte
• Weave: twill / plain
 |  |
|---|---|

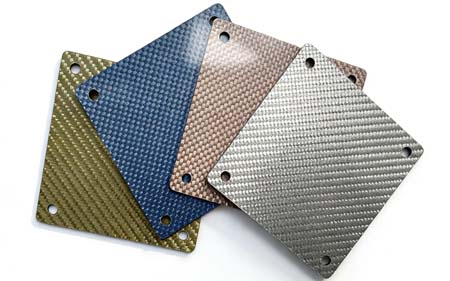

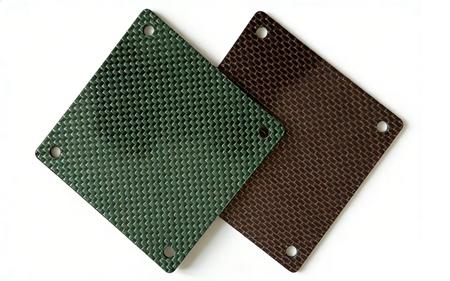

| Colored Fiberglass + Carbon Plate | Colored Filament & Carbon Hybrid Plate |
(4) Key Advantages
• Eye-catching permanent color that never fades, peels, or scratches
• Still ultra-light – over 60 % lighter than same-thickness aluminum
• More than strong enough for daily and semi-structural applications
• Excellent impact resistance and fatigue life
• Corrosion-proof and UV-stable
• Easy CNC routing, drilling, and waterjet cutting with carbide tooling
 |
|---|
| Unidirectional internal layup |
 |
（5）Primary Applications
• Premium drone & RC model cosmetic covers, battery lids
• Gaming & esports gear: keyboard wrist rests, mouse pads, PC case panels
• Automotive interior trim: center console inserts, door cards, kick plates
• Consumer electronics: laptop shells, tablet cases, phone backs
• Professional photo/video: camera quick-release plates, monitor housings
• Luxury goods & fashion: wallets, card holders, eyewear frames, suitcase panels
• Robotics & display models: visible structural panels
 |  |  |  |
|---|---|---|---|
| Colored Fiberglass | Carbon + Red Filament | Carbon + Golden Filament | Carbon-Aramid Hybrid |
